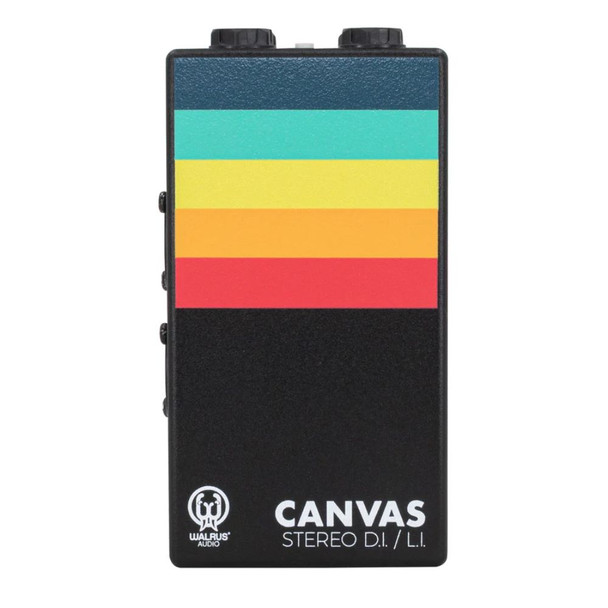

Walrus Audio Canvas Stereo: Dual Line Isolator / D.I. Box

The Walrus Audio Canvas Stereo is a passive Direct Box/Line Isolator designed to convert unbalanced stereo signals into pristine balanced XLR outputs for front-of-house mixers and recording interfaces. Built for Wisconsin worship musicians running amp modelers, keyboard players interfacing with PA systems, and guitarists using DSP rigs like Walrus's own ACS1, Canvas Stereo delivers flat frequency response (20Hz-20kHz) with custom-wound transformers for low THD and full-spectrum clarity. From Madison sanctuaries to Milwaukee dive bars, this pedal-sized DI/LI lives on your pedalboard—eliminating the need for separate stage boxes and simplifying your signal path. Switchable DI/LI modes handle both high-impedance instruments and low-impedance line-level sources. Sum functions combine stereo to mono when needed. Phase flip corrects stereo issues. Ground lift eliminates hum.

DI and LI in One Package

Direct Injection Mode (DI): Connects unbalanced, high-impedance sources (electric guitar, bass) with -20dB reduction (-35dB with pad engaged), converting to balanced XLR via transformer. Mixer/preamp gain brings signal to line level.

Line Isolator Mode (LI): Interfaces unbalanced, low-impedance sources (amp/cab sims, keyboards, DSP rigs) at full volume, converting to balanced XLR via transformer with minimal preamp gain required.

General guide: High impedance (above 1kΩ) = use DI. Low impedance (below 1kΩ) = use LI. When in doubt, test both—this passive device won't damage equipment if connected incorrectly.

Smart Features for Real-World Use

Sum XLR: Combines left and right XLR outputs into mono balanced signal on left XLR when mixer has only one available input. Right XLR disables automatically.

Sum Thru: Combines left and right thru jacks for running into single amplifier (use either thru jack).

XLR Phase Flip: Flips right XLR phase relative to left, fixing out-of-phase issues in stereo setups—critical for keyboard players and stereo rig users.

-15dB Pad: Reduces hot signals in DI mode to minimize distortion (DI mode only).

Ground Lift: Isolates ground pin on XLR to reduce hum when present. Leave out for normal operation.

Specifications

• Brand: Walrus Audio
• Model: Canvas Stereo
• Type: Passive DI/Line Isolator
• Channels: Stereo (left and right)
• Inputs: Dual 1/4" unbalanced
• Outputs: Dual XLR balanced (transformer isolated), dual 1/4" thru
• Frequency response: 20Hz-20kHz (flat)
• Transformers: Custom wound for low THD
• Modes: DI (-20dB reduction) / LI (full volume)
• Pad: -15dB (DI mode only)
• Sum XLR: Combines to mono on left XLR
• Sum Thru: Combines to mono thru
• Phase flip: Right XLR relative to left
• Ground lift: Yes
• Power: Passive (no power required)
